Perimeter security

Temporary Hostile Vehicle Mitigation (HVM) Gates offer high levels of protection, whilst also allowing quick and easy access to authorised vehicles and emergency services.  Ideal for events where access control is required – our gates can be integrated with our range of HVM solutions, providing adaptable protection. These temporary, re-deployable HVM gates can be put into position quickly and then subsequently moved or reconfigured as the need arise, creating a solution that can be easily adapted. We offer a range of gate solutions, such as vertical rising gates and single or double swing gates – all of which re PAS 68 rated. Key features: High-level protection: PAS 68 rated barriers Access control: Allows for quick and easy access to authorised vehicles Modular integration: Integrates with our wider range of HVM solutions, enabling a fully adaptable and scalable security solution For more detail on each gate, see Swing Gates and the Rising Gate. Where a permanent gate is needed, see the Bristorm Swing Gate and the Bri-RISE emergency access gate. Explore the rest of our temporary hostile vehicle mitigation range, or find out how we protect events.

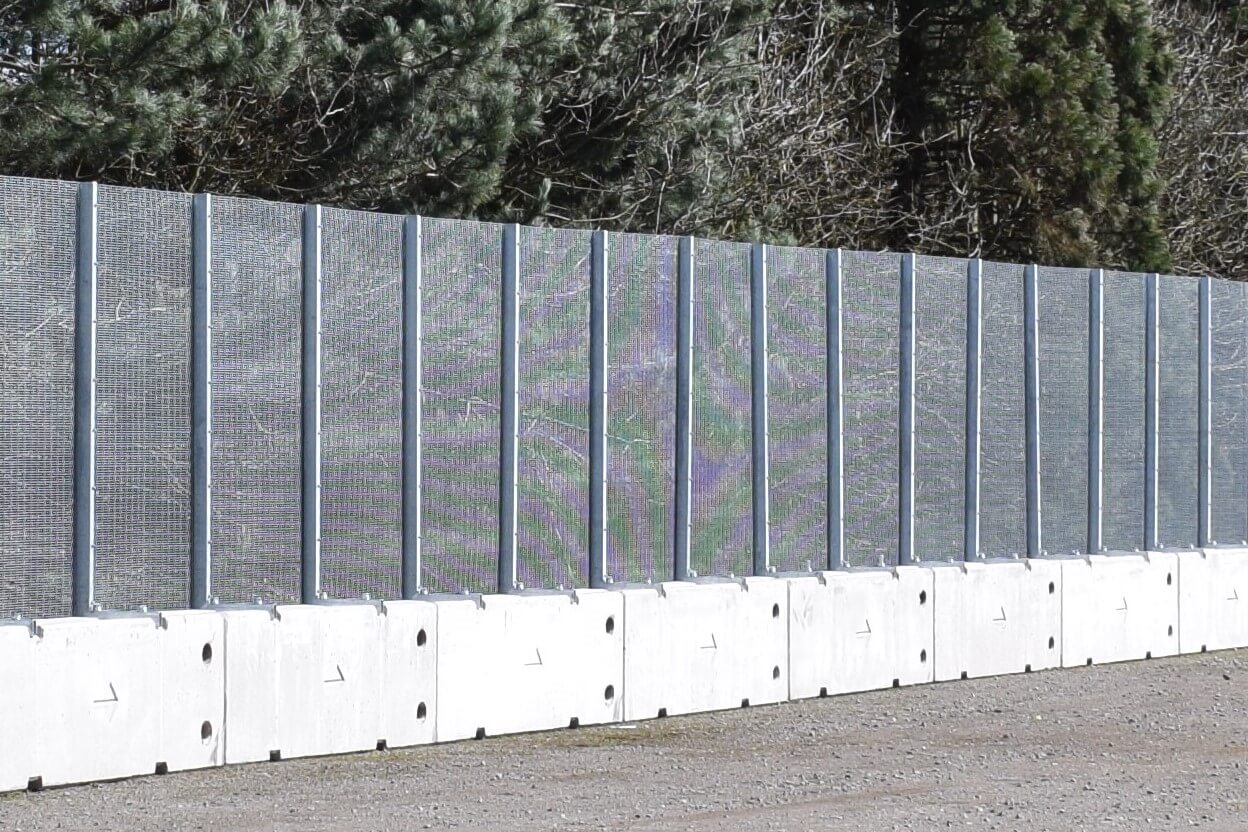

MultiFence is a fencing system that works in conjunction with our Multibloc and Maxibloc products. This affordable and highly capable fencing system is suitable for use across applications such as compound security, perimeter security and protecting vacant property. High Security Solution Also known as prison mesh, MultiFence has small apertures and welds at each intersection that eliminate foot and finger holds, prevent objects being passed through and is particularly effective against the use of conventional hand cutting tools. Multibloc with Multifence can be used to provide perimeter fencing with installation up to 3 metres height. Download Our Hardstaff Brochure

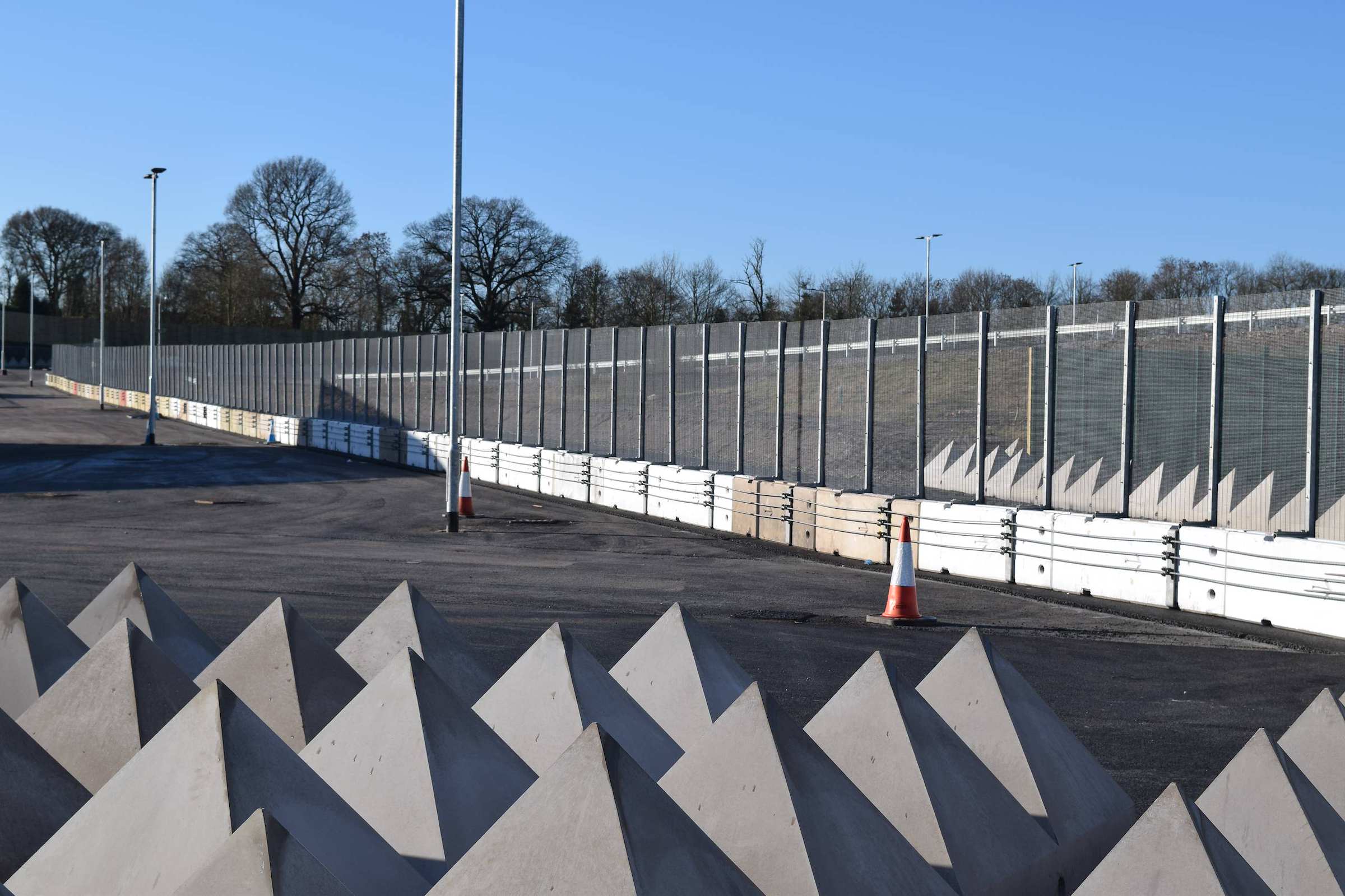

This Surface Mounted Concrete Barrier is a fully integrated vehicle mitigation concrete barrier system that meets PAS68 impact rating specifications. The barrier achieves PAS68:2010 V7500(N2) 64/90:5.0/0.0 and is designed to combat the ever-increasing security risk that sites of critical importance face. These include parts of infrastructure where the terrain is not always favourable. Our system is designed to work on hard and soft ground and requires no foundations. This system combines all the attributes of the standard Multifence system – Impact rated to meet the stringent quality standards of BS EN 1317 Part 2 (vehicle restraint systems) – with the ability to withstand attack by hostile vehicles up to 7.5 tonnes in weight and travelling at 40mph. PAS 68 rated No foundations required Effective hostile vehicle mitigation PAS 68 Multibloc is part of the wider Multibloc family. For other rapidly deployable options, see our HVM barriers, or read how temporary HVM has protected the Bath Christmas Market and Birmingham Christmas Market. Find out more about our work in events security.

A temporary vertical concrete barrier (TVCB) of 3 metres in length by 0.8 metres and weighing 2.5 tonnes, this product is used for workforce protection on roadways. Being fully chapter 8 compliant and easy to install quickly on various surfaces, Multibloc is ideal for roads, construction sites, boundaries, vacant property and car parks. Multibloc is also available as a temporary TVCB solution, and has been used on schemes including the M6 J16-19 smart motorway and the M50 bridge repair.

When it comes to the Bristorm Beam Fence each fence is infinite in length as long as the maximum distance between anchors is maintained per the manufacturer’s installation manual. This anti-vehicle HVM fence is comprised of a tensioned two wire rope system in a weave configuration supported by “I” cross-sectioned line posts, terminated at shallow anchor & ground posts and protected with a double-height “W” beam arrangement. The beam fence consists of the following components: Anchor post Ground anchor Line post ‘W’ beam Wire rope Mechanical fittings The anti-vehicle fence is tested to BSI PAS 68 and successfully stopped a 7,500kg vehicle at 48kph (30mph) with less than a metre of penetration. To protect the fence from corrosion and give it added longevity the steelwork has been hot-dip galvanised to BS EN ISO1461 as standard. While the wire rope strands are zinc plated and HDPE coated as per EN 10264-2:2002 or EN 10255-2. Thicker finishing and powder coatings are available on client request. The Beam Fence is part of our wider range of perimeter security solutions, alongside the Bristorm Zero Fence.

A non-tensioned wire-rope system impact tested to the very highest ASTM F2656 standard. The Bristorm Zero Fence is the most robust in the Bristorm portfolio achieving up to ZERO penetration and ZERO major debris. Tested to ASTM F2656 achieving M50 P1, it has become the industry’s leading high-security perimeter security fence due to its durability in extreme geographical locations. For lower-speed threats, see the Bristorm Beam Fence or explore our full range of permanent hostile vehicle mitigation.

Download datasheet The Bristorm Anti-Vehicle Fence range consists of a number of tensioned wire-rope systems crash tested to BSI PAS 68, for perimeter fencing. The Bristorm Anti-Vehicle Fence range is designed to provide impact test certified perimeter security across long distances. The system consists of tensioned wire-ropes supported by line posts and terminated at anchor points. The length of each fence is infinite, as long as the maximum distance between anchors is maintained in accordance with the manufacturer’s installation manual. Each variation of the anti-vehicle fence system has been crash tested to BSI PAS 68, meeting a variety of risk profiles The fence system itself is composed of anchor posts, line posts, wire rope and mechanical fittings. To ensure longevity, the steelwork for the fence is hot-dip galvanised to BS EN ISO 1461 as standard. While the wire rope strands are zinc plated and HDPE coated as per EN 10264-2:2002 or EN 10244-2. Thicker coatings are available and we can powder coat the fence to a specific colour on request. The Anti Vehicle Fence is available in four different variations: Bristorm 30 Bristorm 40-45 m Bristorm 40-100 m Bristorm 50 The Bristorm range also includes the Bristorm LP and IVP fences, the Bristorm Swing Gate and Bri-RISE emergency access gate for vehicle entry points, and Bristorm Impeder bollards. Find out more about our perimeter security work, or read how Bristorm HVM was specified for a national arena.

The Bristorm LP Fence comes in three different models, the LP 30, the LP 40 and the IVP. Each has been successfully impact-tested to BSI PAS 68 as a hostile vehicle mitigation fence, with a 2,500kg vehicle at varying speeds. Each model in the LP Fence line comprises a tensioned five-wire rope system in a weave configuration supported by “Z” cross-sectioned line posts and terminated at post & ground anchors. The length of each fence is infinite as long as the maximum distance between anchors is maintained in accordance with the manufacturer’s installation manual. All tested to BSI PAS 68, the LP 40 and IVP models successfully halted a 2,500kg vehicle at 64kph (40mph), while the LP 30 stopped a 2,500kg vehicle at 48kph (30mph), achieving penetration ratings between 1.6 and 3.2m. This makes the system ideal for securing industrial sites requiring protection from lower to medium velocity attacks or accidental impact. For added protection and longevity the three different variations of the fence are all hot-dip galvanised to BS EN ISO 1461 as standard. While the rope strands are zinc plated and HDPE coated as per EN 10264-2:2002 or EN 10244-2. Thicker coatings are available and we can also powder coat it to a specific finish on request. The system consists of the following: Ground anchor Line posts Fence posts (if required) Wire rope strands

The Bristorm Impeder Shallow Mount range of HVM bollards are made up of standard CHS sections, cast-in concrete or socketed. View our Bristorm Impeder Bollards – Standard Foundation →

Need permanent HVM without restricting pedestrian access? Impeder Standard Bollards are the ideal solution. From low impact protection, to high-security HVM, the Bristorm bollards can be installed across all urban and industrial sectors keeping critical infrastructure, asset and people safe. They are tested at speeds between 30 and 50mph. View our Bristorm Impeder Bollards – Shallow Foundation →

The Impeder and Stopper Bollards are the ideal solution. From low impact protection, to high-security HVM, the Bristorm bollards can be installed across all urban and industrial sectors keeping critical infrastructure, asset and people safe. They are tested at speeds between 10 and 20mph.

Manually operated to eliminate the need for expensive hydraulics or to reduce the risk of electrical failure, these hostile vehicle mitigation gates are designed to offer access to authorised emergency vehicles only. Protect your site’s perimeter with the Bri-RISE Emergency Access Gate. Designed to integrate with the Bristorm Zero Fence, the Bri-RISE will complete any high-security perimeter line. The Bri-RISE has been impact-tested to both the international IWA 14-1 standard and the American ASTM F2656-15. Not only did the Bri-RISE Gate withstand a hit from a 7,200kg vehicle at 80kph (50mph), but also achieved less than a metre penetration. The Bri-RISE has been designed with a self-balancing arm, meaning that it can be easily operated by a single user, while also reducing the risk of injury. A catch post can also be supplied to lock the gate arm into the open position when not in use. Further innovation has followed the initial development of the gate, the Bri-RISE can now be integrated into any existing or new fence lines. As well as this, the rising arm can be fixed in position allowing the arm to bridge a gap where underground services may be present. This reduces cost and eliminates the need to disrupt on-site operations. The steelwork on the gate has been hot-dip galvanised to BS EN ISO 1461 to give it added protection against corrosion and increase the longevity of the gate. We can also provide thicker coating and powder coating on client request.

The Bristorm Bri-Swing Gate is one of the highest-performing access gates on the market. Tested to IWA 14, the Bristorm Bri-Swing Gate was designed to restrict access football stadiums on match-days. Features Manually Operated – When locked in a closed position the manually operated swing gate will inhibit vehicular access from a nearby ring-road, ultimately stopping them from reaching fans and pedestrians near the stadium. With a maximum 8m clear span, large vehicles can still pass through so day-to-day operations aren’t disrupted. Shallow Foundation – The shallow footing means underground services aren’t disturbed making this a cost-effective yet reliable hostile vehicle mitigation solution for the public realm, suitably applied around stadiums, arenas and city centre events. The Bristorm Bri-Swing Gate can be utilised as a standalone security measure or can be integrated alongside alternative, existing or new fence lines. Impact Tested – Tested to the international impact test standard – rated to IWA 14-1 from both directions. The Bri-Swing Gate can withstand impact from a 7,200 kg vehicle travelling at 64 kph (40mph). The Bri-Swing Gate has a secure locking mechanism and can be installed left or right-handed; a two-gate arrangement is also possible to span across wide carriageways. For the fence line itself, see the Bristorm 30, 40 and 50 anti-vehicle fence range. Where an emergency access point is needed, see the Bri-RISE emergency access gate, and for short-term or event deployments, our temporary HVM gates. Explore our full permanent hostile vehicle mitigation range and perimeter security solutions.
