Temporary hostile vehicle mitigation

Pitagone is a portable and lightweight hostile vehicle mitigation (HVM) barrier system, designed to protect pedestrians at events and in public spaces from vehicle-borne attacks. The Pitagone range includes the Pitagone F11 and Pitagone F18. Both are modular, can be assembled without tools by a single person and transported in a van, yet are capable of stopping a 7.5 tonne truck travelling at 48km/h. Units can also be moved easily to allow emergency vehicles to pass. This makes Pitagone ideal for event security, from Christmas markets to sporting events, and for temporary perimeter security where a quick, low-impact deployment is needed. See Pitagone F18 in action at the Bath Christmas Market, and read more about protecting Christmas markets with HVM. View Our HVM Brochure

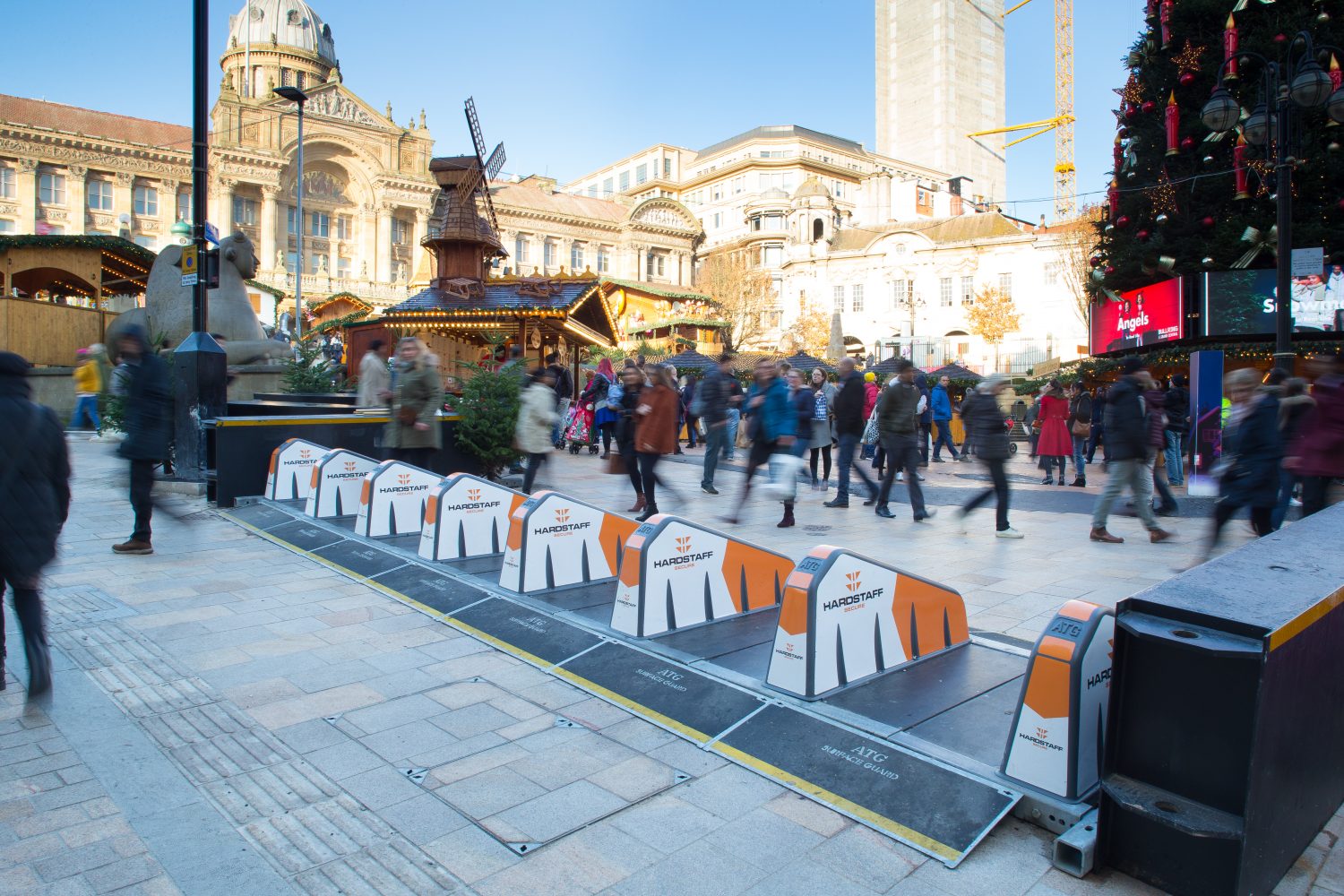

Our Surface Guard™ vehicle barrier provides temporary hostile vehicle mitigation (HVM) protection from vehicle-borne threats at events, as well as providing a safe area for pedestrians where shops, cafés and bars provide outdoor seating. Many different site scenarios and existing street furniture items can be incorporated within a Surface Guard deployment and the product is ideal for council pedestrianisation schemes. Surface Guard was used to protect visitors at the Birmingham Christmas Market. Design Although the barrier is designed to prevent vehicle penetration there is the facility to allow emergency vehicles being admitted with the Surface Guard Emergency vehicle access point option (EVAP). Supplied in individual units, Surface Guard is lightweight and able to be stacked completely flat making transportation very easy. The system is compact, easy to store, lightweight, robust, and easy to install. Installation can be achieved across one standard road width with kerbs in just 40 minutes with four people and lifting bar and no forklift truck assistance is required. Product features: Ideal for pedestrianisation schemes Suitable where there is large footfall such as major event – allows for maximum pedestrian permeability EVAP allows for emergency vehicles Lightweight, robust, and quick to deploy (can be installed by four operatives) Modular system, so can be adjusted to suit any location, including negotiating kerb lines Surface mounted (no fixings required) The system can be stacked completely flat making transportation & storage very easy Testing parameters: IWA 14-1:2013 Barrier V2500[NG1]/48/90:4.5 IWA 14-1:2013 Barrier V7200[N3C]/32/90/4.8

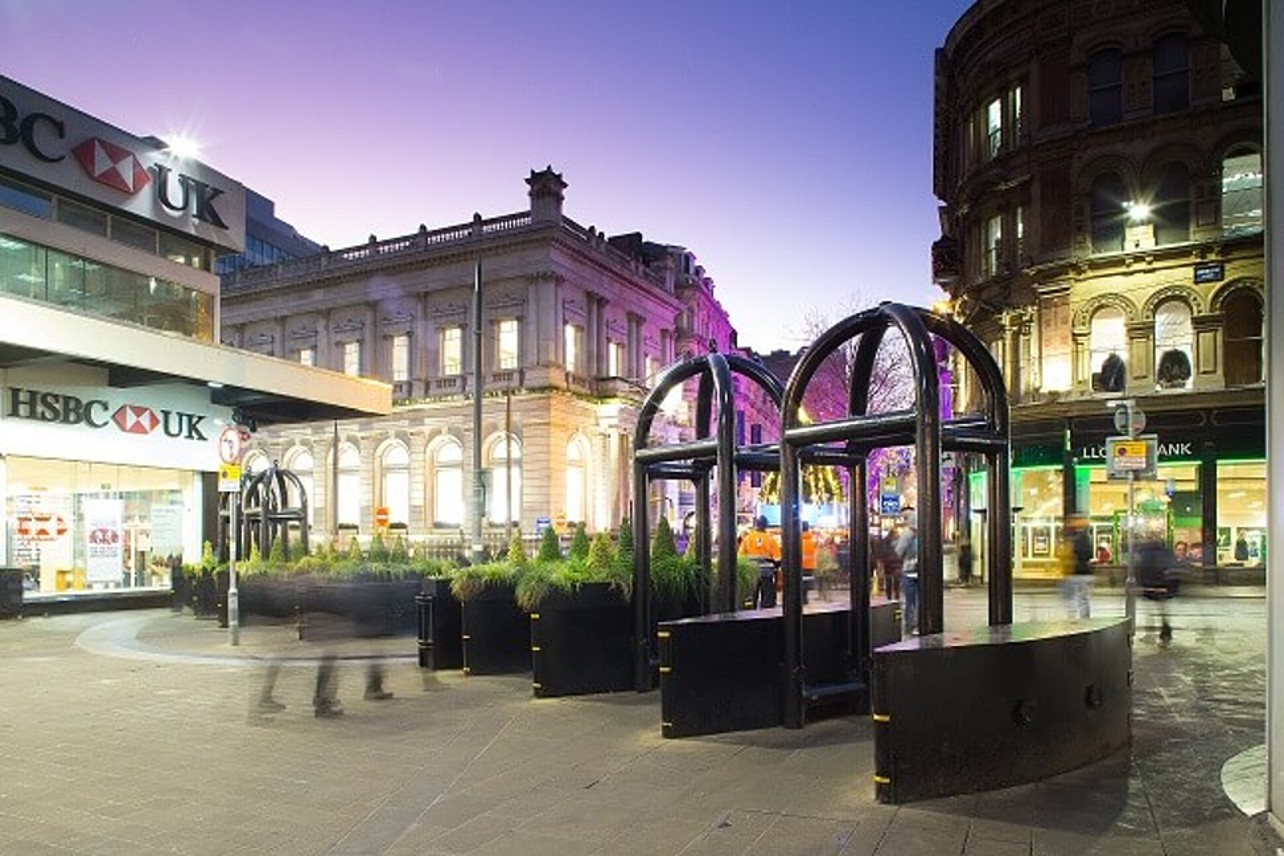

Our Pedestrian Portal keeps people moving while maintaining hostile vehicle mitigation protection. The Pedestrian Portal enables pedestrian movement through a line of HVM measures where a more visual point of access is required to aid crowd control. It is designed for large scale events such as festivals, sporting fixtures and Christmas markets, where crowds need a clear, safe route in and out without leaving a gap a vehicle could use. A typical arrangement uses six HVM Barges and accessories, and a wide variety of ground plates and barge configurations can be applied to suit specific applications. Units can be supplied in standard or premium paint finishes. The Pedestrian Portal is PAS 68 rated and is available to buy or rent. Product features: Provides pedestrian access while guarding against hostile vehicles Designed for large scale events Easy pedestrian flow and a clear, visible access point Works with HVM Barges as part of a wider temporary HVM scheme PAS 68 rated Available for purchase or rental See temporary HVM in action in our Birmingham Christmas Market case study.

Our Surface Mounted HVM Bollards are a PAS68 hostile vehicle mitigation solution. Our surface mounted system is one of the first of its kind to be impact rated and provide PAS 68 certified impact protection. Fast and straightforward installation and removal allows the array of HVM bollards to be used when heightened security measures are needed, performing as a temporary security measure. This Hostile Vehicle Mitigation bollard system can be installed on a more permanent basis if site security requirements change. Ground surfaces are unharmed as no bolts are required. Taking just over ten minutes to install six bollards, the array does not require anything to anchor it to, as the system is stand alone. This system can be used to protect an internal or external perimeter. Not only will the bollards mitigate against vehicle-borne explosive attacks; they will also provide an intelligent solution for temporary security against attacks where vehicles are used as the weapon. Available for purchase or rental. Product features: PAS68 rated Fast installation and removal Temporary Surface mounted with permanent options available

Hostile Vehicle Mitigation (HVM) Barriers for a variety of applications across different sectors to enhance safety and security. Surface mounted steel and concrete barriers that can be used individually or connected to form an extended length of HVM. Each variation weights 3 tonnes. Designed to offer the maximum protection, these are used as part of the national barrier asset in the UK and by the Dutch government. Available for purchase or rental.

A barge is part of our temporary hostile vehicle mitigation range and provides a level of pedestrian safety whilst allowing the flow of pedestrians. Used for protection against vehicle-borne attacks, the surface mounted solution provides maximum protection over short runs and can be used as part of other products such as our drop arms and swing gates. Barges can be simply installed as part of a temporary or permanent solution and with a small footprint are perfect for cities and events where space is limited. Previous examples of this product were installed around various London landmarks. Each barge weighs 3 tonnes. Barges can be connected in various ways, can be provided in standard or premium paint finishes and connect together in different ways depending on the use. Available for purchase or rental.

The Multibloc Barge is ideal for blocking a gap between structures and fence lines to restrict vehicle access, whilst maintaining high levels of pedestrian flow either side. Whilst primarily assisting with pedestrian safety management, the Multibloc Barge can also be incorporated into a gate solution allowing for authorised vehicle access. A cost-effective option consisting of two Multibloc concrete barriers connected side by side can be placed between existing structures and runs of street furniture. Each surface mounted unit may be painted to any required colour with traffic signs attached to the front and rear in compliance with the Traffic Sign Regulations and General Directions 2016, if required. Suited for high level pedestrian flow protection Compliant to TSRGD 201 Signage can be added

Temporary Hostile Vehicle Mitigation (HVM) Gates offer high levels of protection, whilst also allowing quick and easy access to authorised vehicles and emergency services.  Ideal for events where access control is required – our gates can be integrated with our range of HVM solutions, providing adaptable protection. These temporary, re-deployable HVM gates can be put into position quickly and then subsequently moved or reconfigured as the need arise, creating a solution that can be easily adapted. We offer a range of gate solutions, such as vertical rising gates and single or double swing gates – all of which re PAS 68 rated. Key features: High-level protection: PAS 68 rated barriers Access control: Allows for quick and easy access to authorised vehicles Modular integration: Integrates with our wider range of HVM solutions, enabling a fully adaptable and scalable security solution For more detail on each gate, see Swing Gates and the Rising Gate. Where a permanent gate is needed, see the Bristorm Swing Gate and the Bri-RISE emergency access gate. Explore the rest of our temporary hostile vehicle mitigation range, or find out how we protect events.

Zoneguard Plus is a hostile vehicle mitigation product that provides a very high level of protection whilst facilitating quick and easy installation of short and long lengths. Zoneguard Plus has been developed as a rapidly deployable Hostile Vehicle Mitigation (HVM) security system that is successfully rated to both IWA 14 and CPNI Base accreditations. The system uses the standard Zoneguard Vehicle Restraint System (VRS) as its core, with modular elements added to meet the demands of both urban and non-urban applications; these elements include anti-climb fencing, pedestrian portals, vehicular access gates, connections and transitions to the National Barrier Asset (NBA) systems, end and intermediate terminals and special units to allow for differences in both horizontal and vertical alignment. PAS68 IWA-14-1 The core system is fully rated in accordance with both European and US VRS standards (EN 1317, MASH 2016 and NCHRP 350), providing a safe, crashworthy barrier for errant motorists in addition to its HVM and CPNI Base capabilities. Anchor systems are also available for installation on varying ground conditions, ranging from shallow urban pavements to soft uneven fields. Features 12m Length (includes joints, excludes cables) and weighs 1140kg and available with various fencing options to suit your requirements. Zoneguard Plus builds on our Zoneguard temporary barrier system. Read how Zoneguard Plus was installed at Heathrow Airport, see bespoke Zoneguard protecting the Brent Cross Interchange, or explore our full temporary HVM range.

This Surface Mounted Concrete Barrier is a fully integrated vehicle mitigation concrete barrier system that meets PAS68 impact rating specifications. The barrier achieves PAS68:2010 V7500(N2) 64/90:5.0/0.0 and is designed to combat the ever-increasing security risk that sites of critical importance face. These include parts of infrastructure where the terrain is not always favourable. Our system is designed to work on hard and soft ground and requires no foundations. This system combines all the attributes of the standard Multifence system – Impact rated to meet the stringent quality standards of BS EN 1317 Part 2 (vehicle restraint systems) – with the ability to withstand attack by hostile vehicles up to 7.5 tonnes in weight and travelling at 40mph. PAS 68 rated No foundations required Effective hostile vehicle mitigation PAS 68 Multibloc is part of the wider Multibloc family. For other rapidly deployable options, see our HVM barriers, or read how temporary HVM has protected the Bath Christmas Market and Birmingham Christmas Market. Find out more about our work in events security.
