Brifen EN1317 (N2, H1, H2)



The wire rope safety system weaving itself around the globe.

Used globally, the Brifen VRS is tested to international standards and is designed to capture, contain and redirect a vehicle upon impact. With both N2, H1 and H2 systems available, the Brifen range is inclusive of tested and approved transitions and end terminals to complete the wire rope arrangement.

Brifen VRS is a suitable alternative when wider working widths can be achieved due to its flexibility. It is tested and approved to EN1317, NCHRP 350 and MASH.

View Brifen Brochure

Technical Data

Working Width

Drawing No.

Post Spacing

No. of Ropes

Working Width

N2 W5

Drawing No.

PD-CEWRSB155

Post Spacing

6000mm

No. of Ropes

3

Working Width

N2 W6

Drawing No.

PD-CEWRSB156

Post Spacing

8000mm

No. of Ropes

3

Working Width

H1 W5

Drawing No.

PD-CEWRSB250

Post Spacing

3200mm

No. of Ropes

4

Working Width

H2 W8

Drawing No.

PD-CEWRSB350

Post Spacing

3200mm

No. of Ropes

4

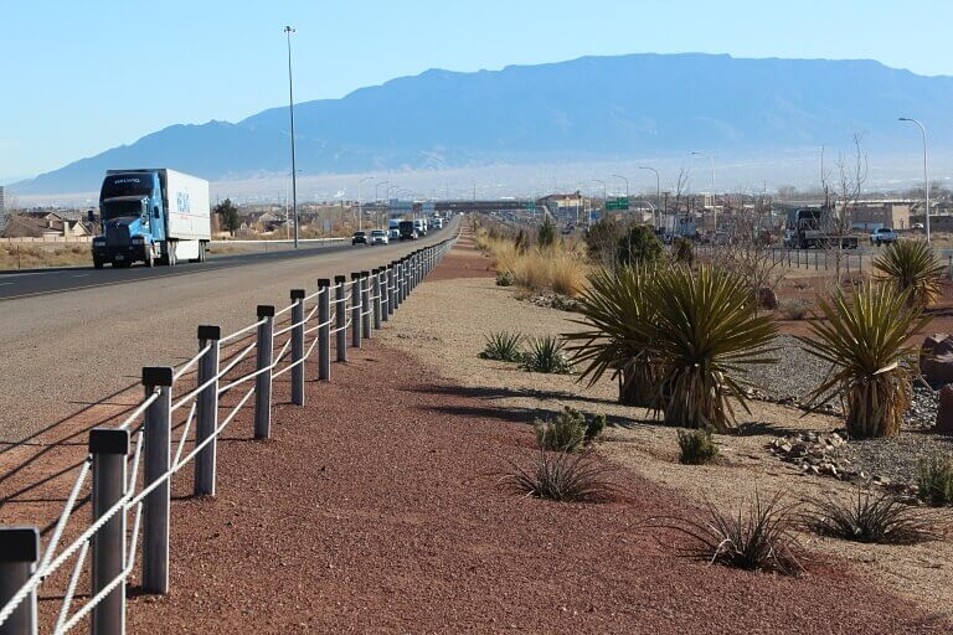

Photograph of Brifen EN1317 vehicle restraint system in the desert with a truck driving past

Our portfolio consists of N2 (TL3) and H1 (TL4) systems. For seamless connection between the two barrier systems, Hill & Smith supply a tested and approved transition. To complete the wire rope arrangement, the Brifen VRS comes with an end terminal that is tested and approved to EN1317.

The minimal components required makes installation significantly quicker and easier which helps reduce the maintenance life cycle costs.

As a 2,3 or 4 rope barrier system it allows sand & debris to pass directly through it and not collect into dangerous ‘drifts’ which then encroach the highway traffic lanes. This improves safety and minimizes maintenance.

Product features:

  • Quick and easy installation
  • After impact, fence line stays in an upright position
  • Brifen remains ‘in tension’ even with the huge local temperature variance between day & night, due to the interwoven design
